Sound pressure and horn-typical dynamics, paired with spaciousness, openness and high efficiency

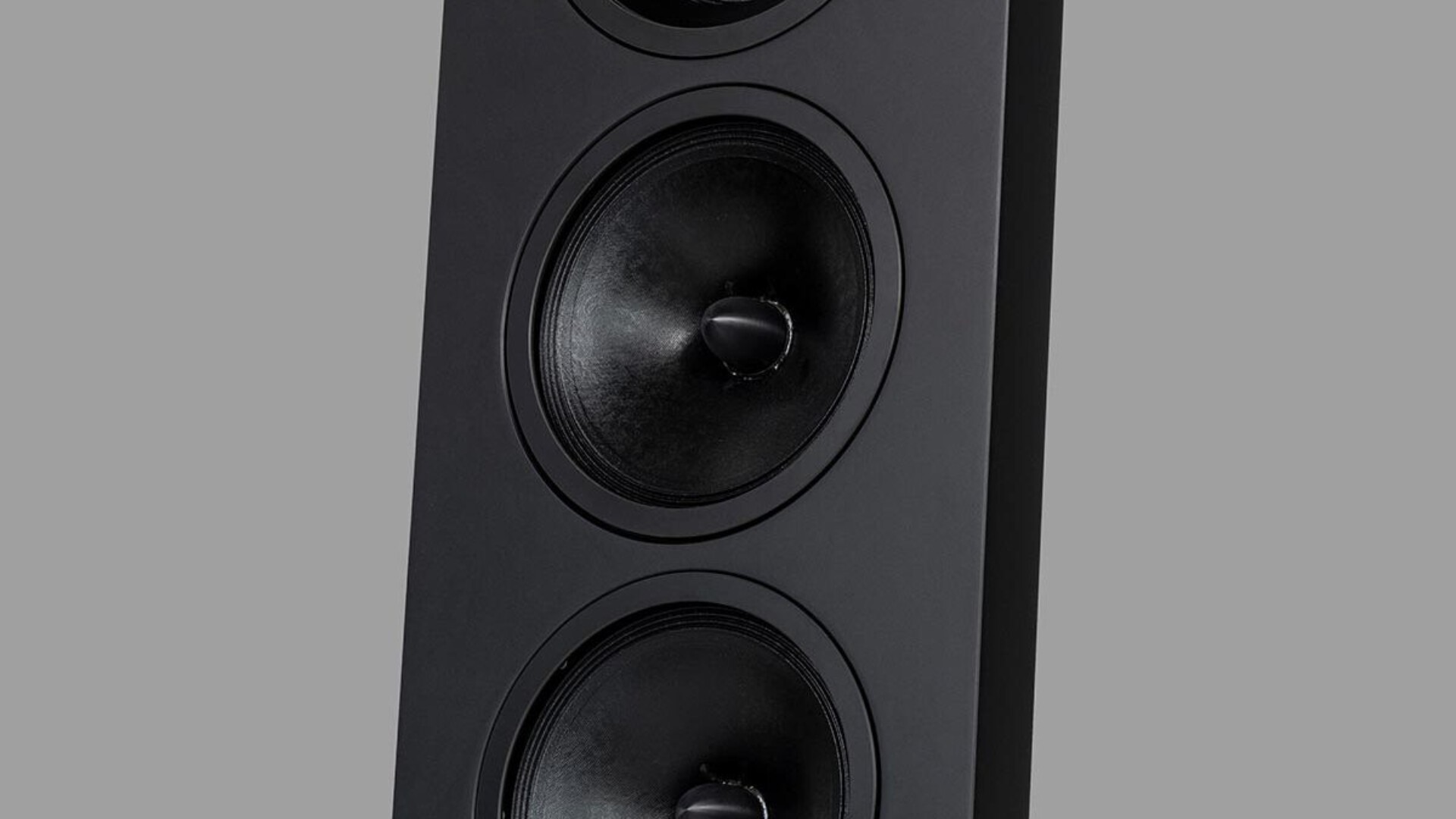

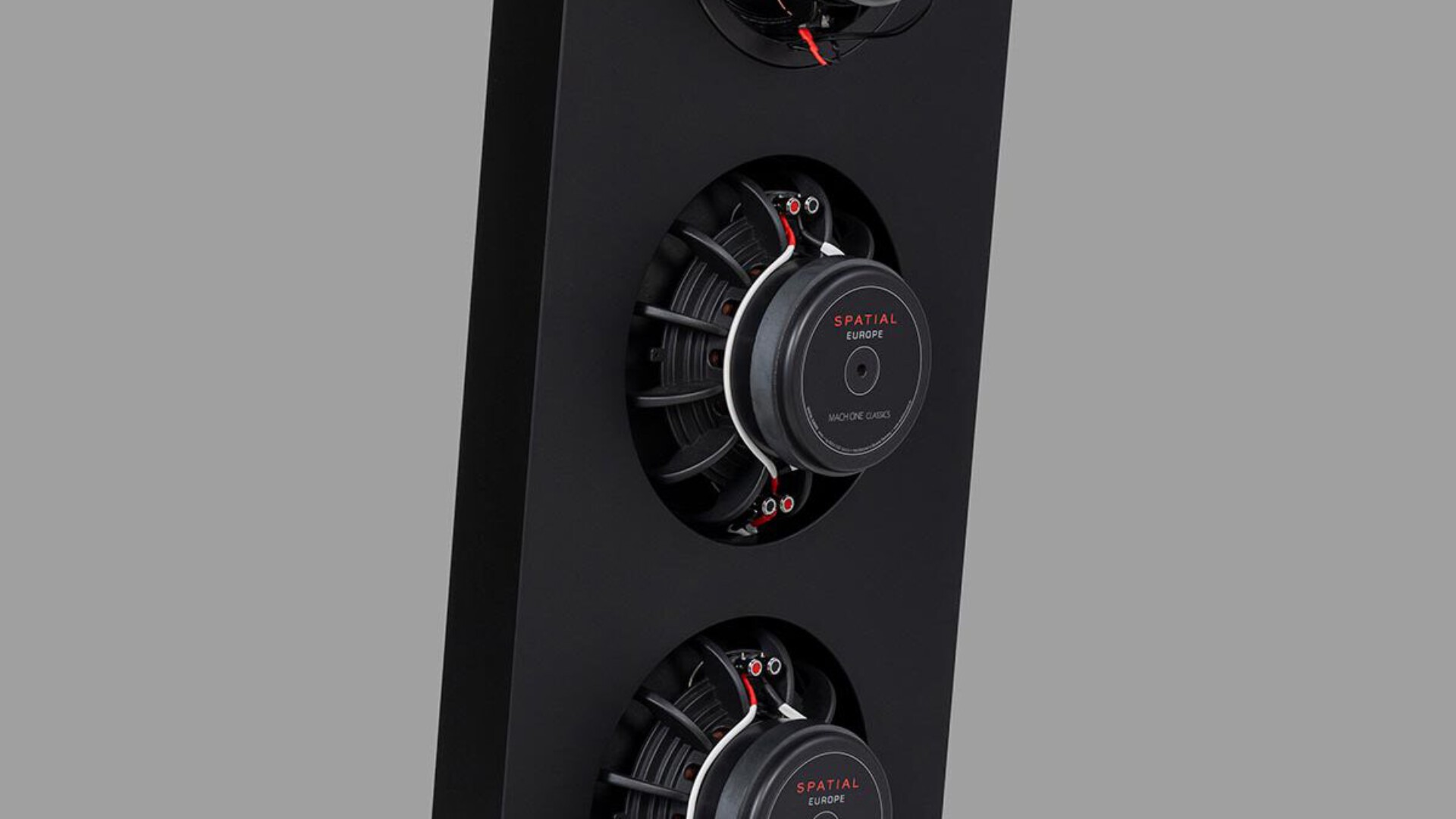

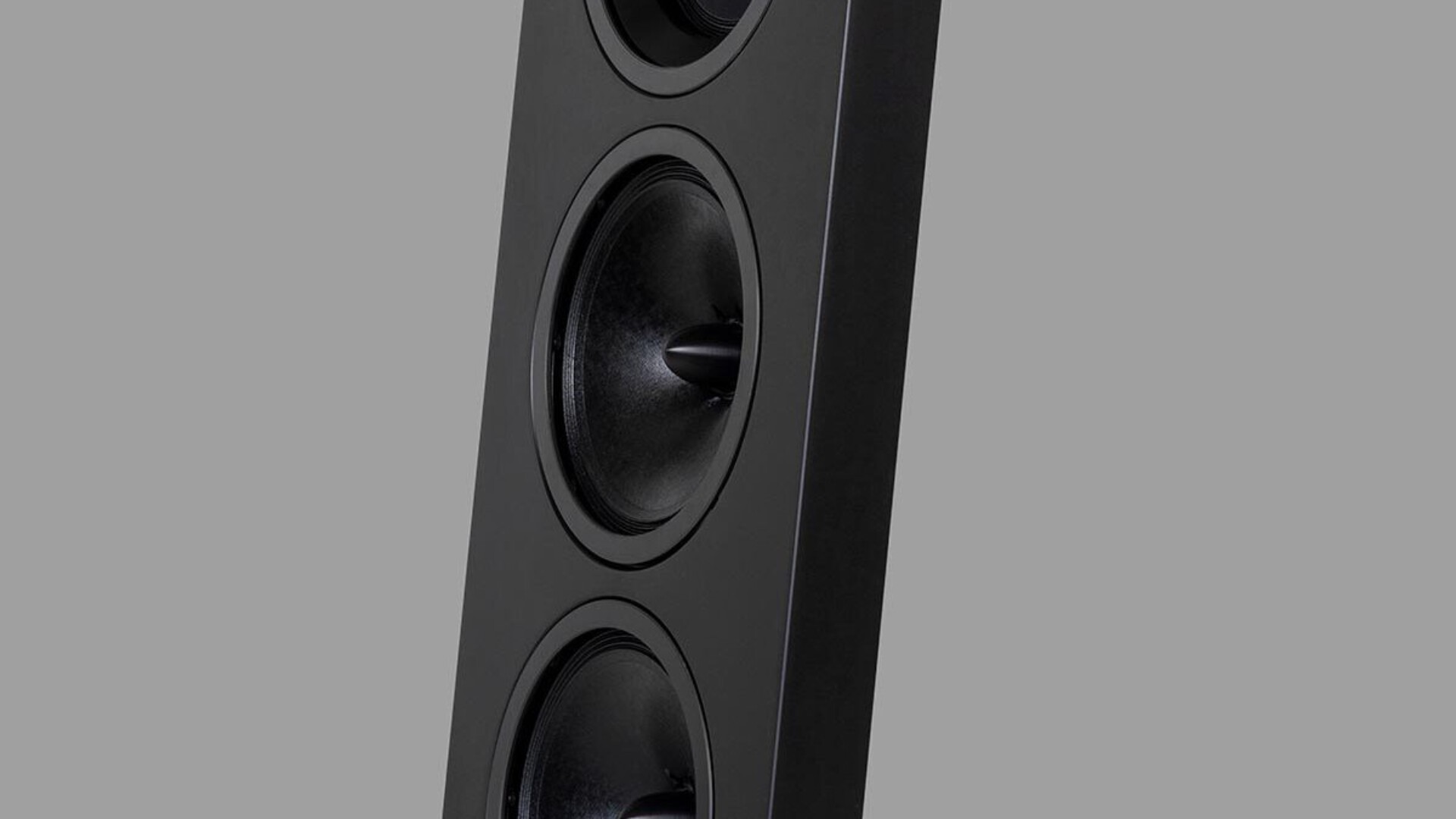

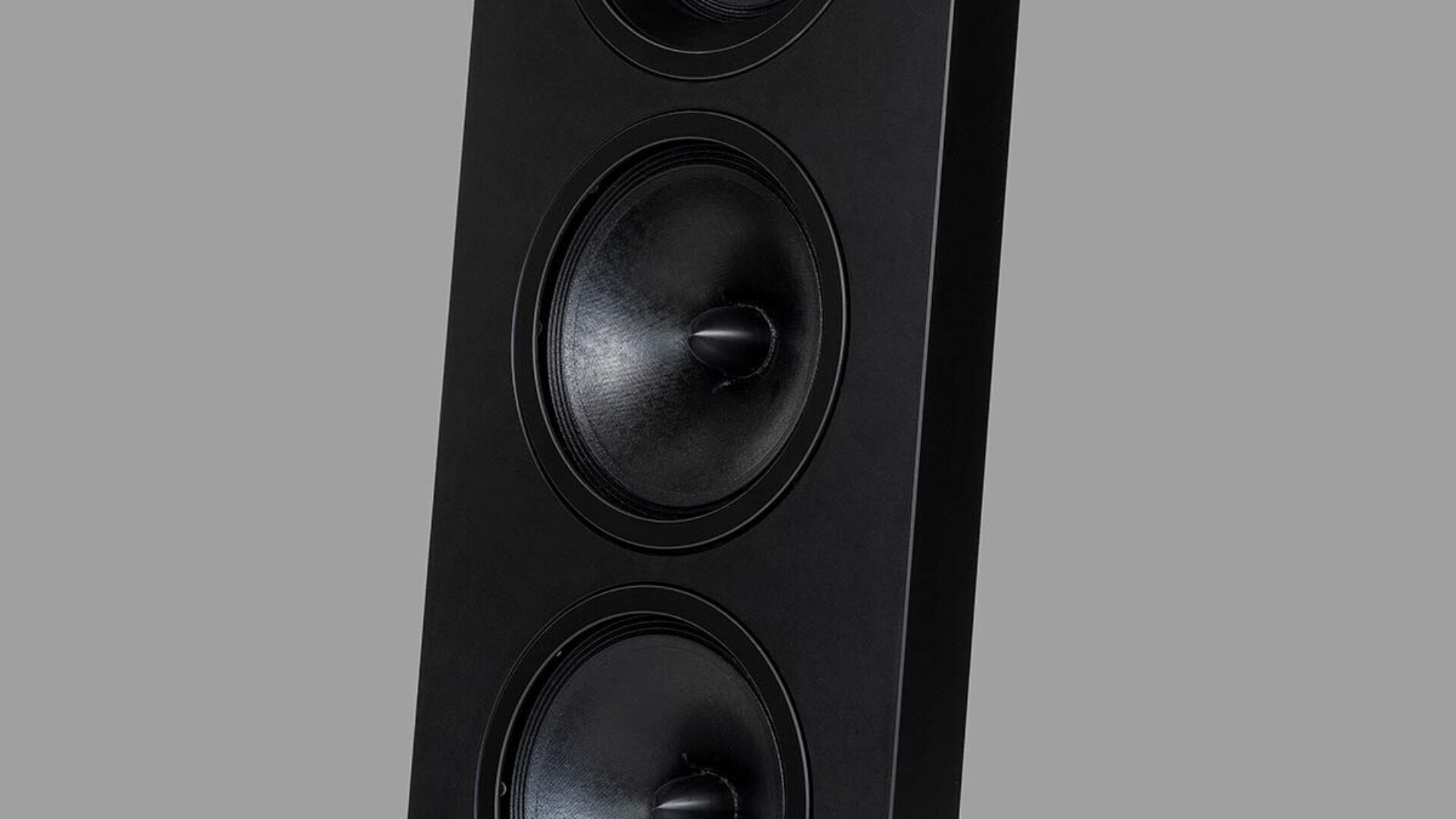

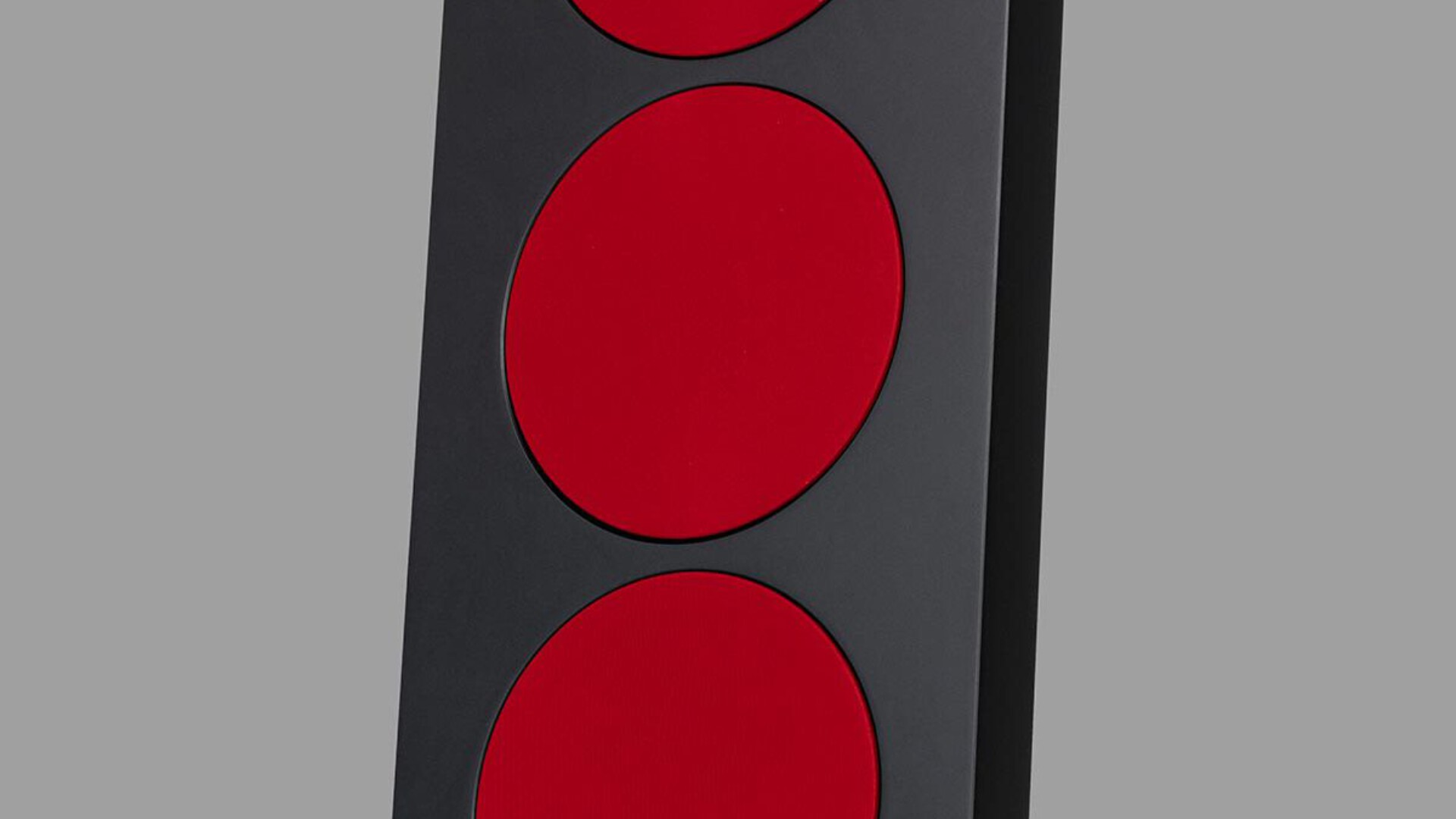

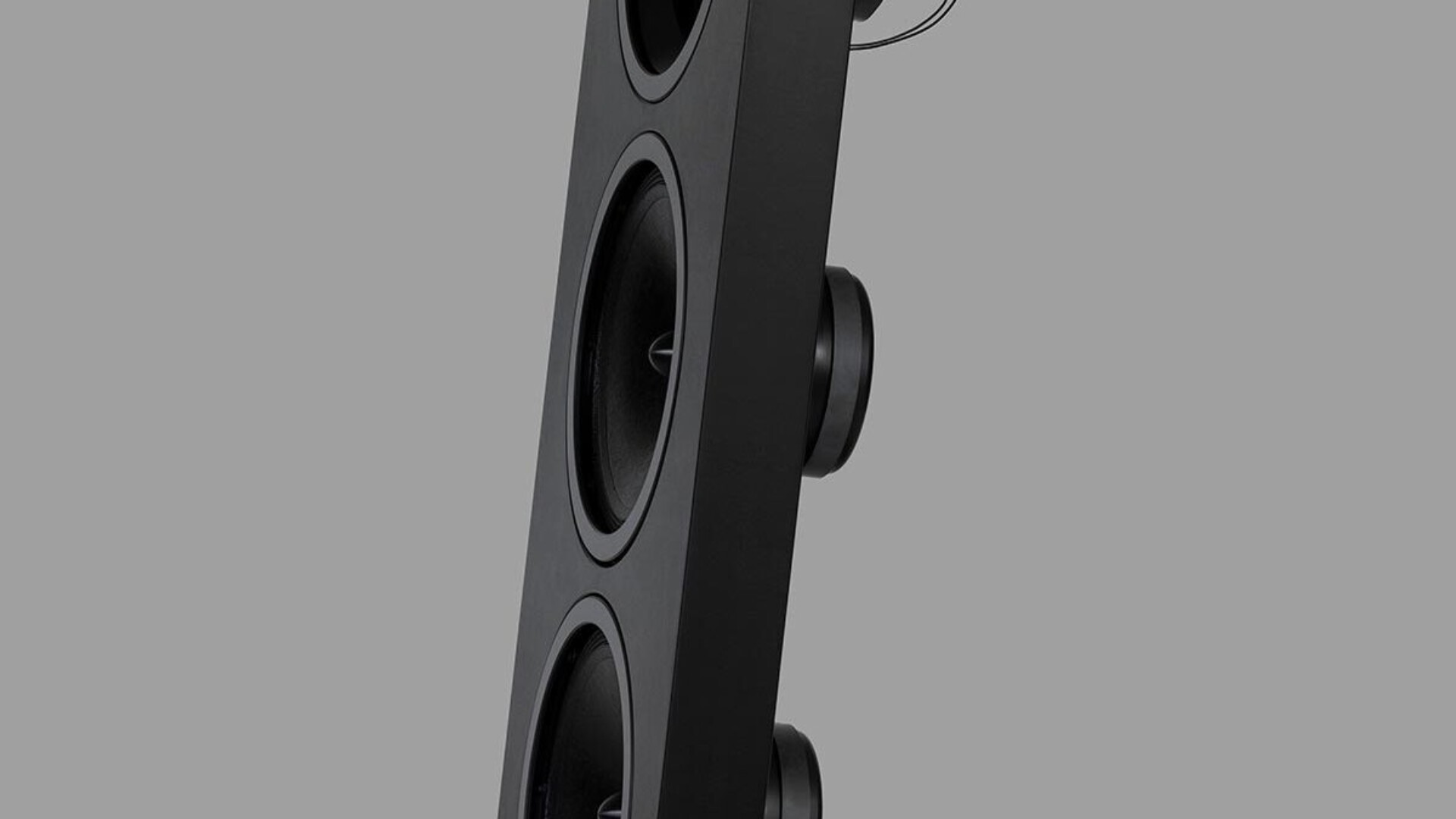

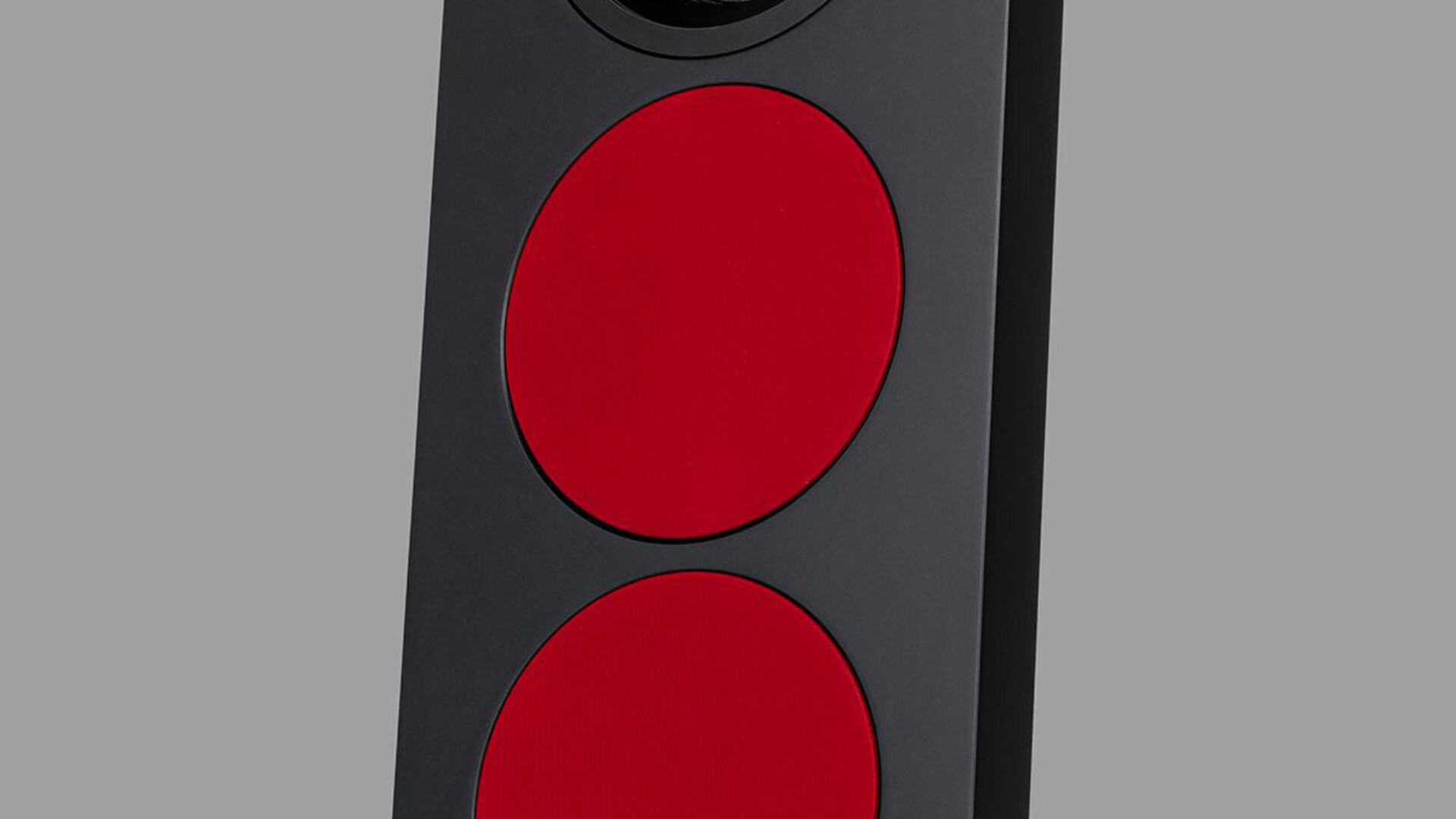

Our new No 5 with an open-back coaxial system in combination with two 12 inch double voice coil basses.
Because we love bass.
Frequency response:
32 Hz – 21 kHz
Efficiency:
96 dB/W/m
Impedance:
4 Ohm
Type:
3 -way
Drivers:

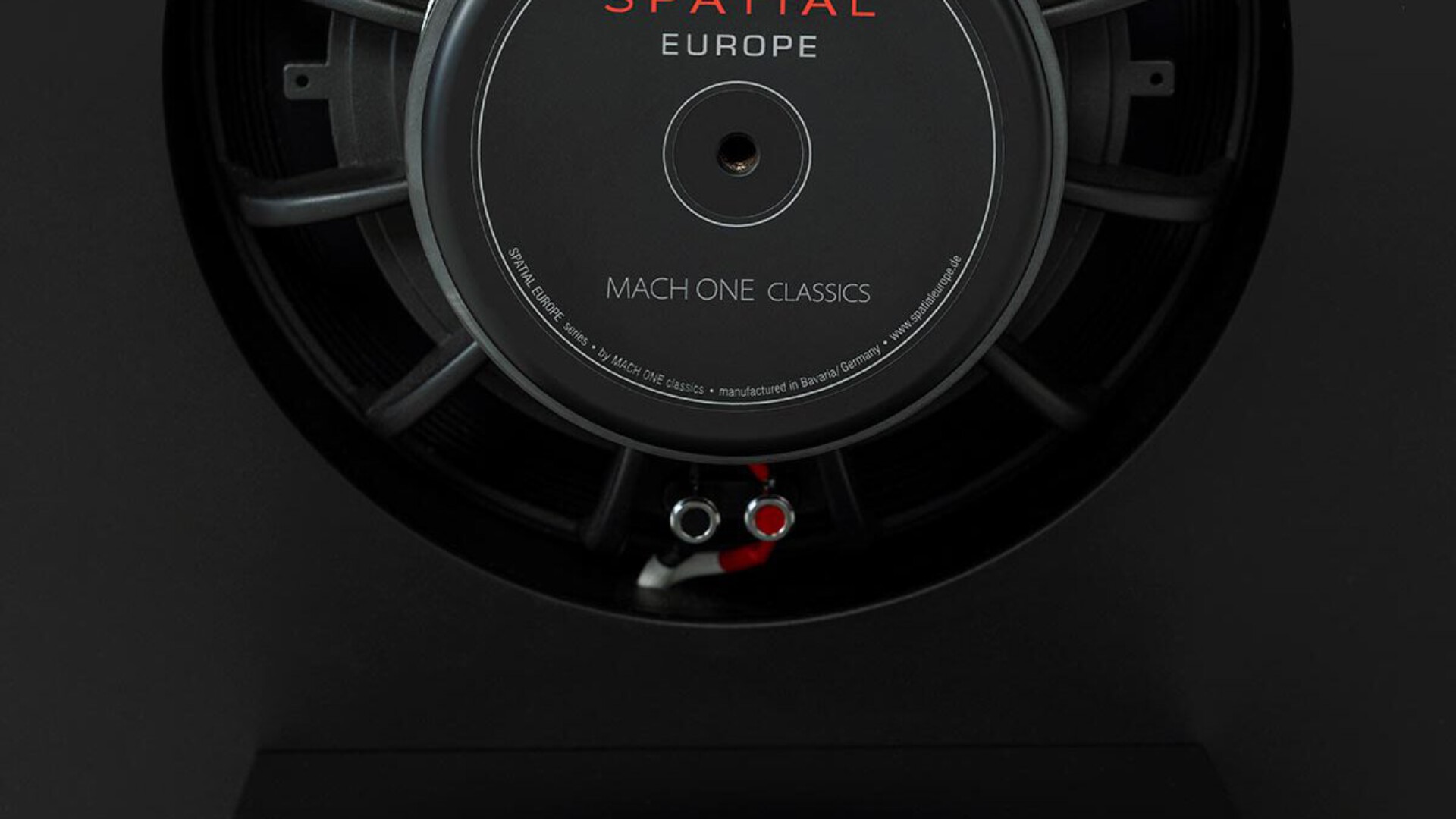

2 x 12" double voice coil bass with Faraday copper cage,

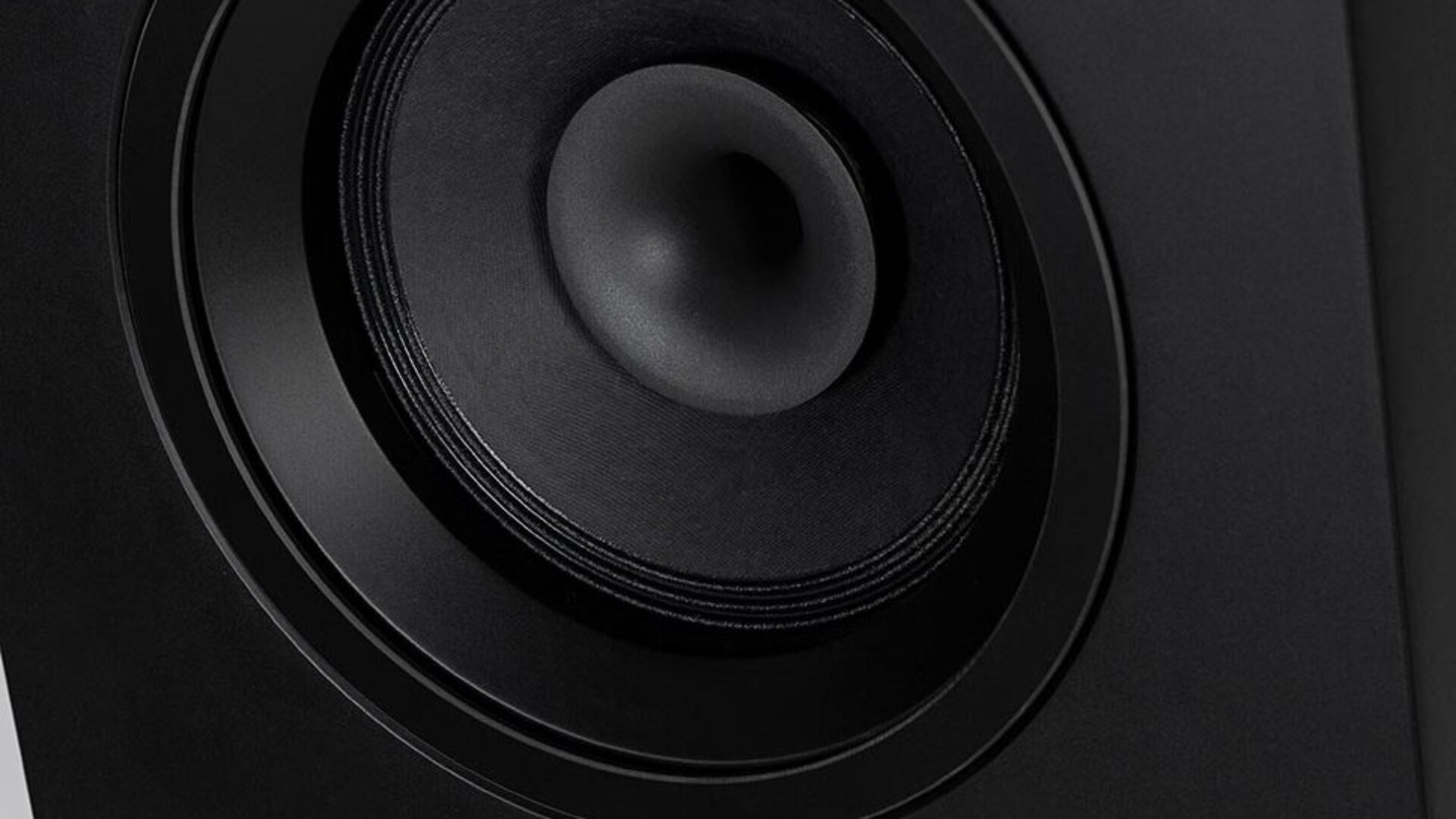

10" coaxial speaker with 1.75" spherical wave dipole hornDimensions (H/W/D):
110 x 45,7 x 7,6 cm Weight: 48 kg
NEW! SPATIAL Europe Nº5 Presentation of the world first at High End 2024 Hall 4, Stand S 17 and Stand S 20
By using the two 12 inch dual voice coil basses with copper Faraday sockets in the magnet around the voice coil, any suction circuit is unnecessary. The result is a significant increase in efficiency and a superb midrange. In combination with our newly optimized serial 3-way crossover, the Nº5 is a new milestone in Spatial Europe development in terms of dynamics, stage imaging and timbre.

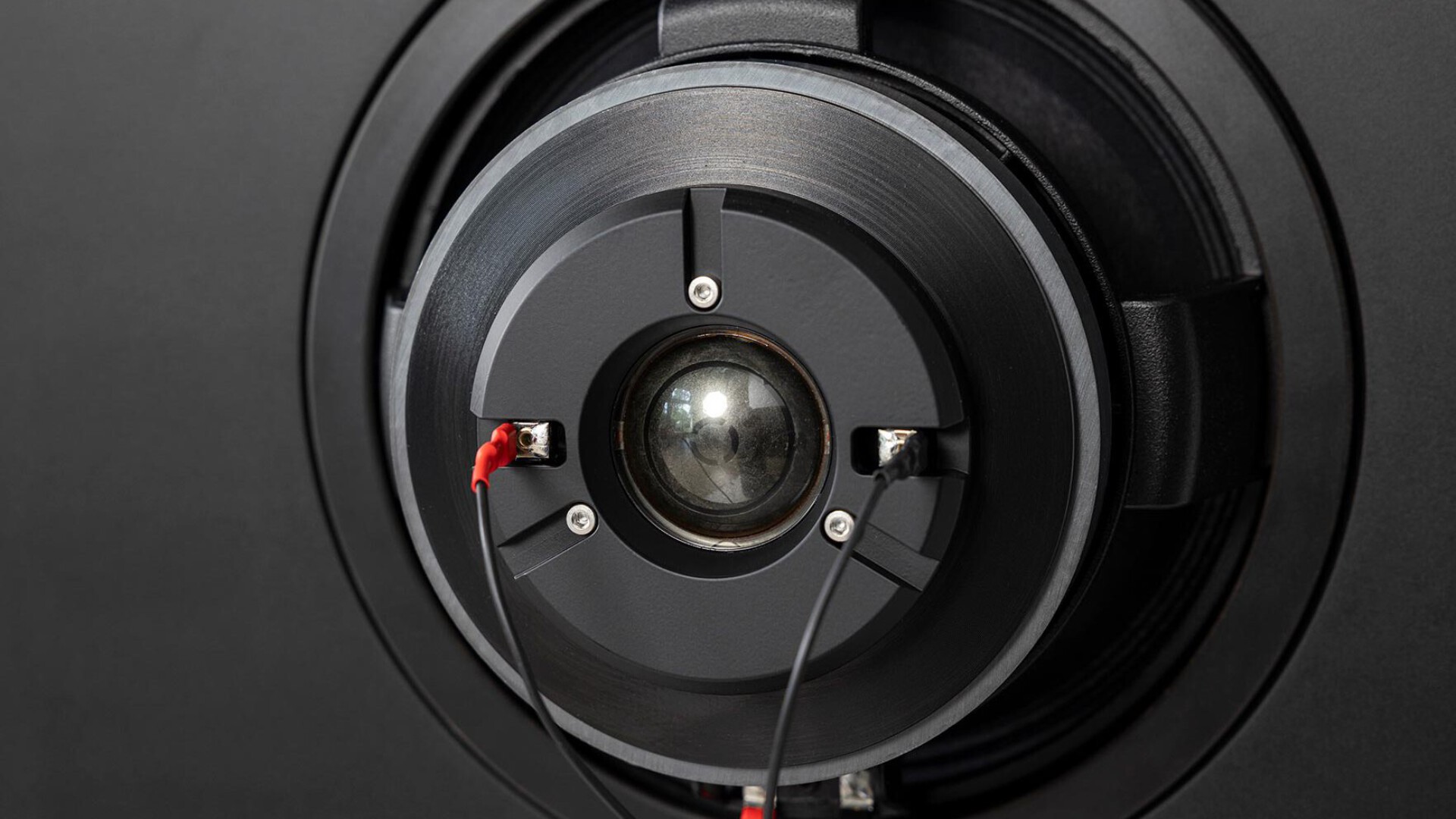

Extreme Finesse: By using our new 10 inch coaxial system with 1.75 inch spherical wave dipole horn in conjunction with our newly optimized serial 3-way crossover, operation is also possible with amplifiers from 8 watts! (Push/Pull or Single Ended)
Special Features: 10 inch coaxial system with 1.75″ spherical wave dipole horn with optimized aluminum cladding for rear radiation, 8 N solid core internal cabling, serial 3-way switch for extremely easy operation on single ended tube concepts, Jantzen capacitors, low-resistance Mundorf layer core coils, Jupiter Beeswax copper foil capacitors, Mundorf Supreme Resistors, WBT bronze flat connectors, speaker connections with WBT Next Gen copper terminals; SPATIAL Europe fire bronze ball spikes – optionally SPATIAL Europe Isolation feet; tailored to the weight of the speaker (>info)
Recommend placement: Distance from loudspeaker leading edge to rear wall from 65cm; listening distance from 2,5 m; listening room size from 20 sqm.
Important: All Spatial Europe loudspeaker models have a break-in time of up to 500 hours. For our customers and dealers we offer a recording service in our sound booth.
Recommend amplifiers: Spatial Europe AMP Nº2, Spatial Europe AMP Nº3, Luxman SQ N-150, Thivan Labs 300 B, Thivan Labs 211, Westend Audio Leo
Recommend cables: Spatial Europe Wire Nº1, Spatial Europe Wire Nº 2
NEW! SPATIAL Europe AMPS:
The Spatial Europe tube amps are produced exclusively by Audion for Spatial Europe. Audion owner Graeme Holland tunes the output transformers of the Spatial Europe AMPS to the respective Spatial Europe model. > report at Low Beats: https://www.lowbeats.de/spatial-und-audion-traumgespann-aus-dipol-box-und-roehren-amp/
The output transformer is matched to the impedance and Qts of the respective Spatial Europe model at no extra charge.
RRP: from € 17,500 / pair
